2 Installing The Device

This chapter describes the specific operations for installing the device.

Preparation：

  • One M4 and one M6 allen head screwdrivers have been prepared.
  • The mounting bracket and mounting screws (3xM4*8 with washers, 1xM6*10 with washers) have been prepared as shown below.

TIP

Mounting bracket and mounting screws are optional and need to be purchased separately.

Steps：

TIP

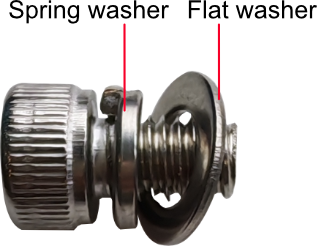

When using M4 and M6 screws, refer to the following diagram to place spring washer and flat washer.

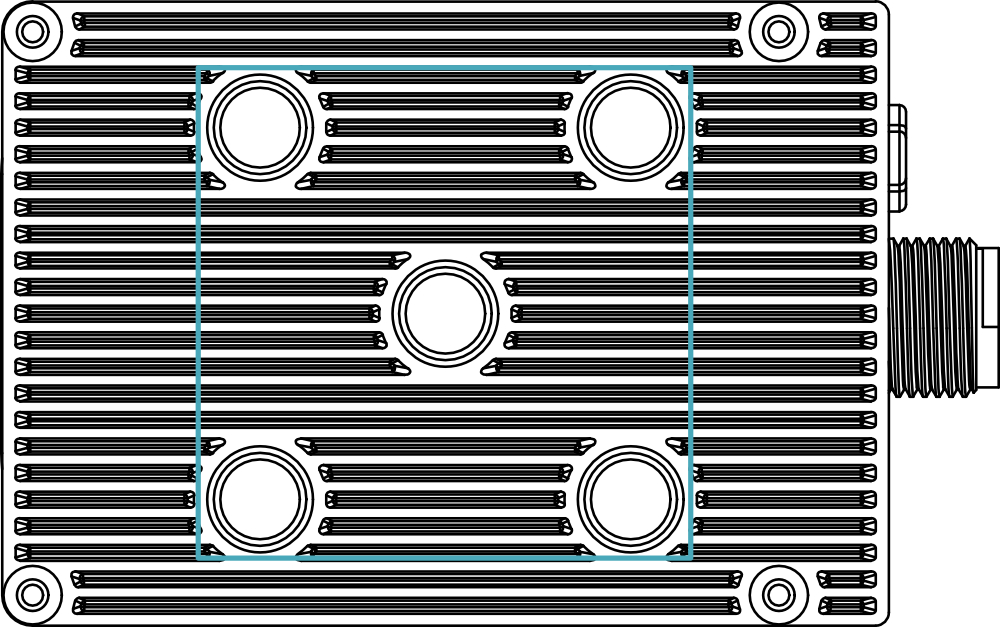

  1. Locate the positions of the bracket mounting holes on the device, as indicated in the figure below.

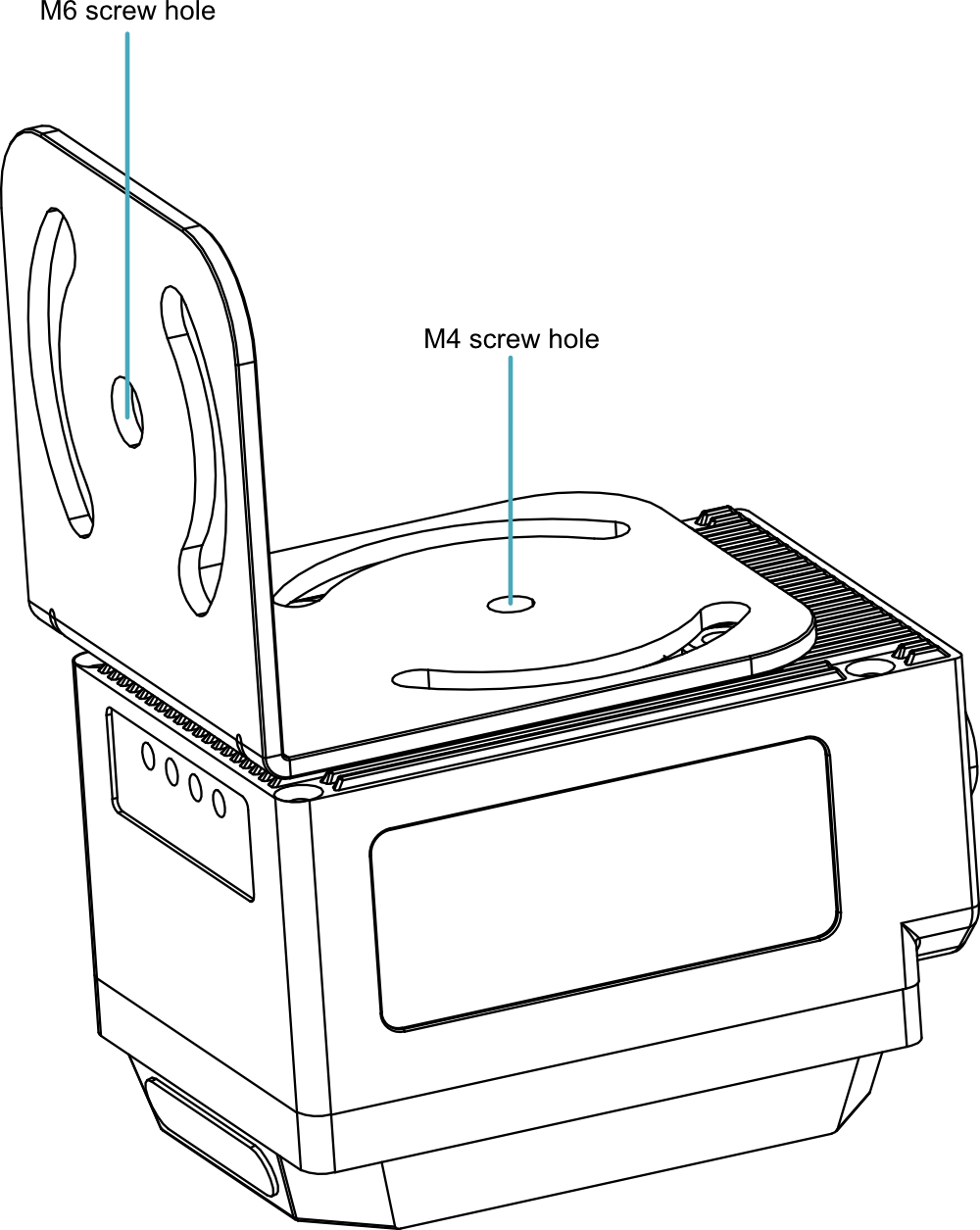

  1. Place the mounting bracket over the device mounting holes, aligning the bracket (the side with M4 screw holes) with the center screw hole on the device.

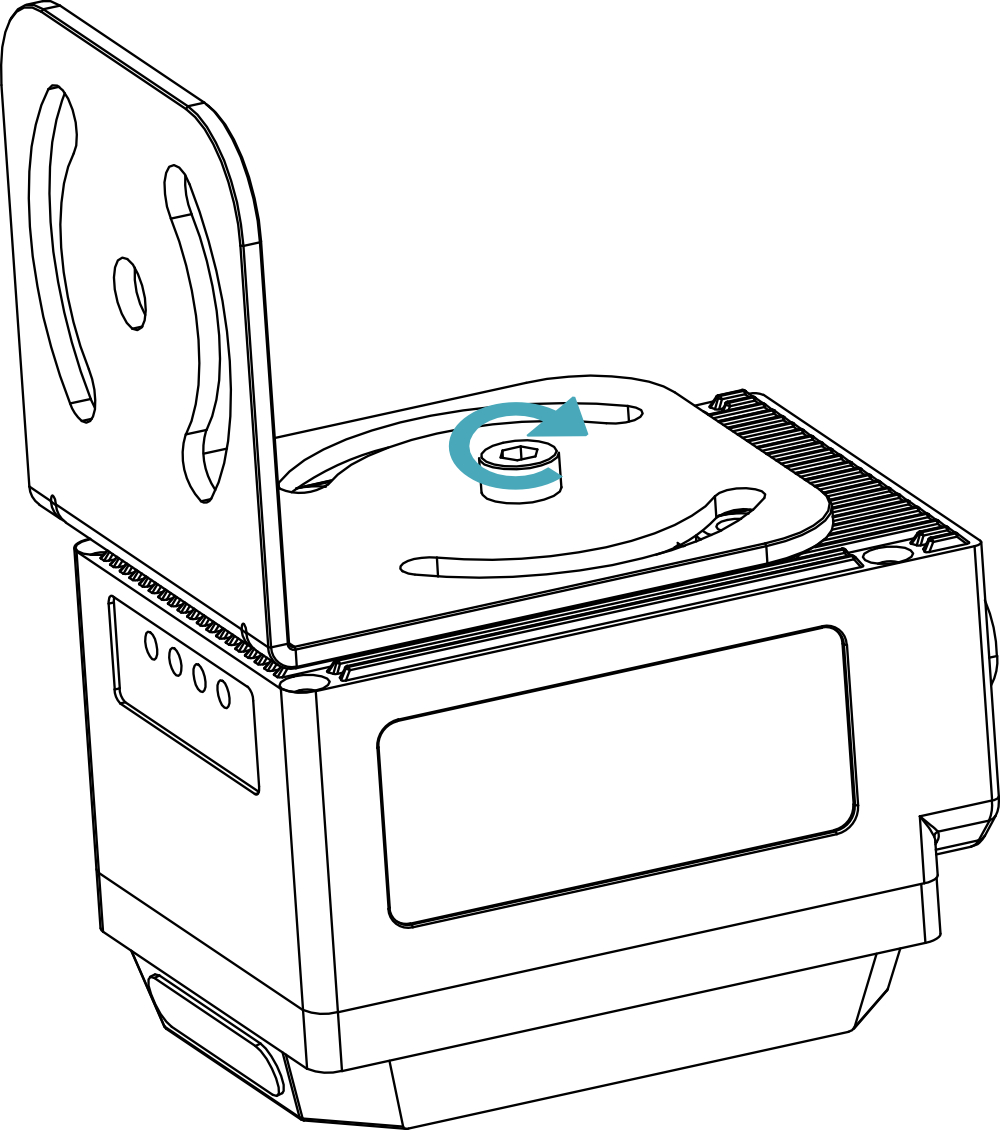

  1. Insert one M4 screw with washer into the center screw hole, then use the M4 hex key to tighten the M4 screw clockwise to secure the bracket to the device.

  1. (Optional) Rotate the bracket as needed to adjust the mounting direction.

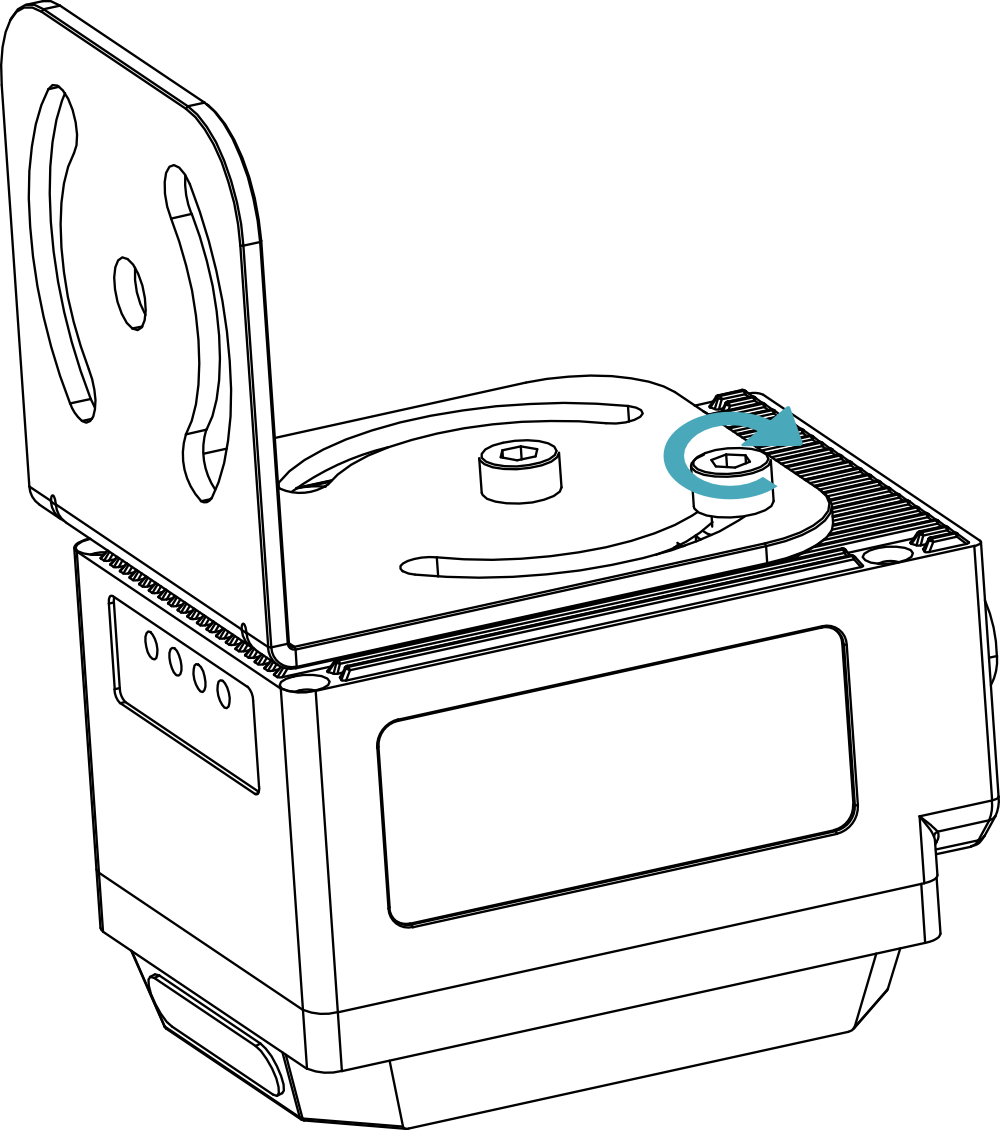

  2. Insert one M4 screw with washer into a peripheral screw hole, then use the M4 hex key to tighten the M4 screw clockwise.

TIP

It is recommended to secure the bracket using one center screw and one peripheral screw.

  1. Use M6 screws to secure the bracket and other equipment.

TIP

Adjust the installation position according to different on-site engineering requirements. It is recommended to secure the bracket using one center screw and one peripheral screw.
