Fanless Passive Cooling for Wide Temperature Operation
CPU heat is conducted to the metal enclosure through the full-surface heatsink — no fan, no noise
Operates from -25°C to 50°C; CPU runs at full speed without throttling at high temperatures
Suitable for 24/7 continuous deployment

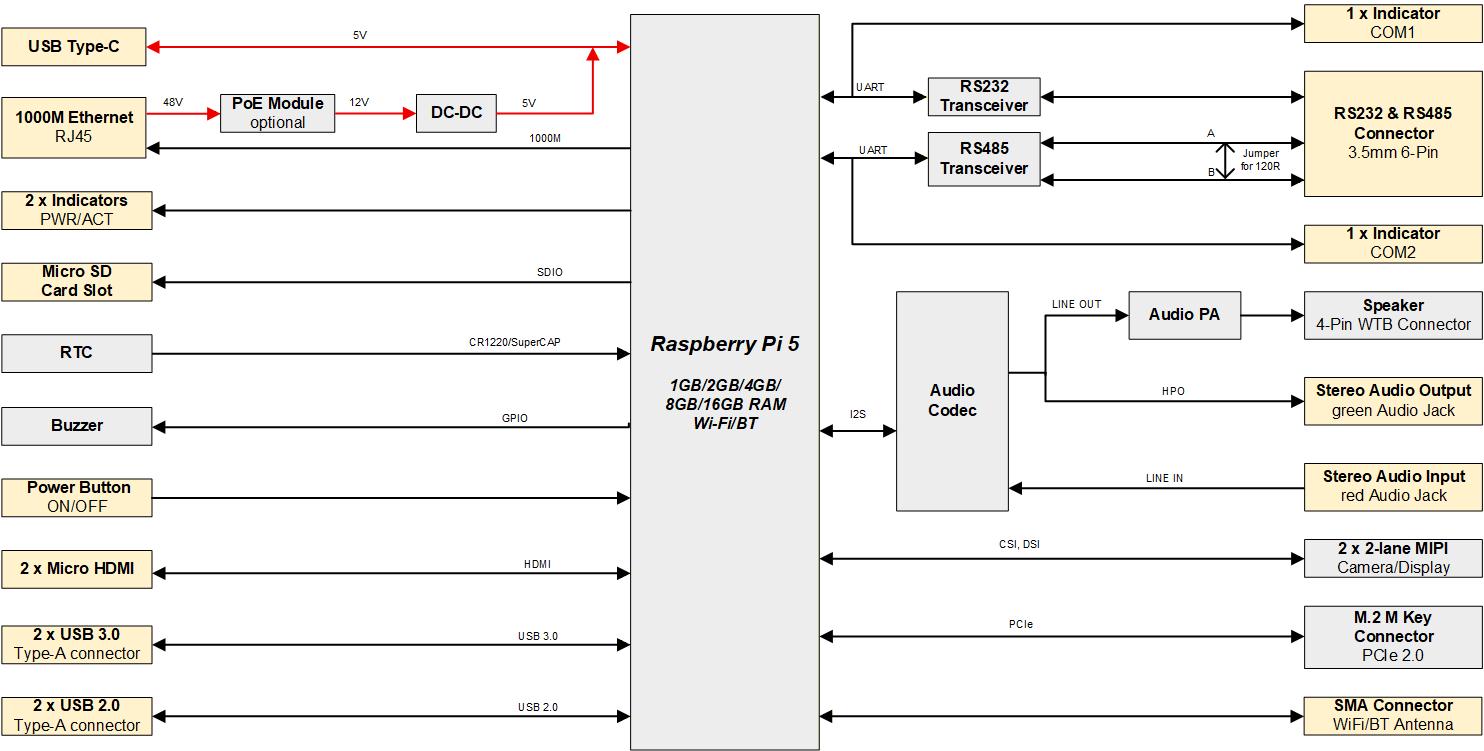

Expanded Industrial Interfaces
Standard RS232 and RS485 ports provide direct connection to PLCs, instruments, and other field devices
Audio input/output available via 3.5mm jacks
Optional Power over Ethernet (PoE) supplies both data and power over a single cable
Optional M.2 NVMe SSD; supports booting from SSD

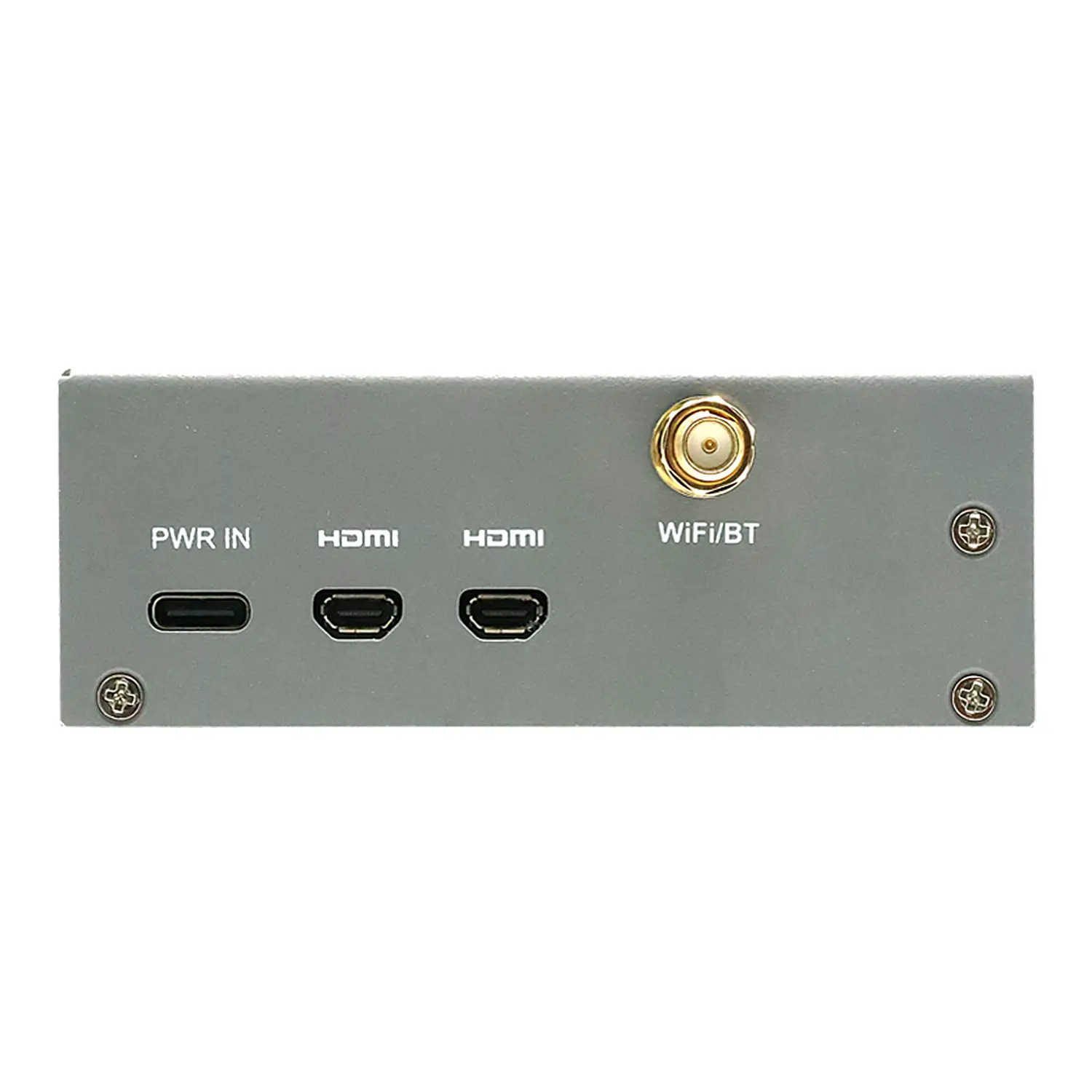

Dual 4Kp60 HDMI outputs for extended dual-display setups

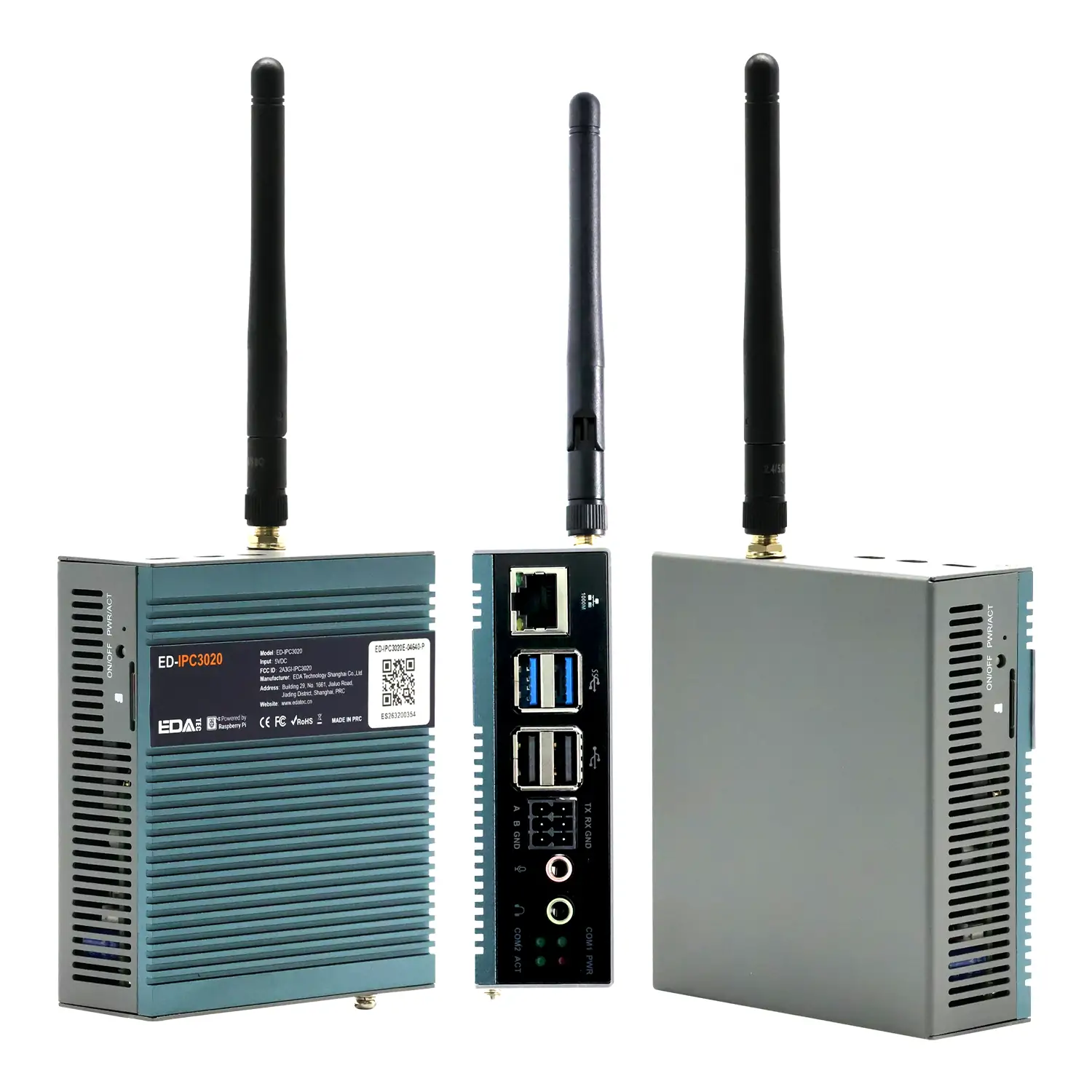

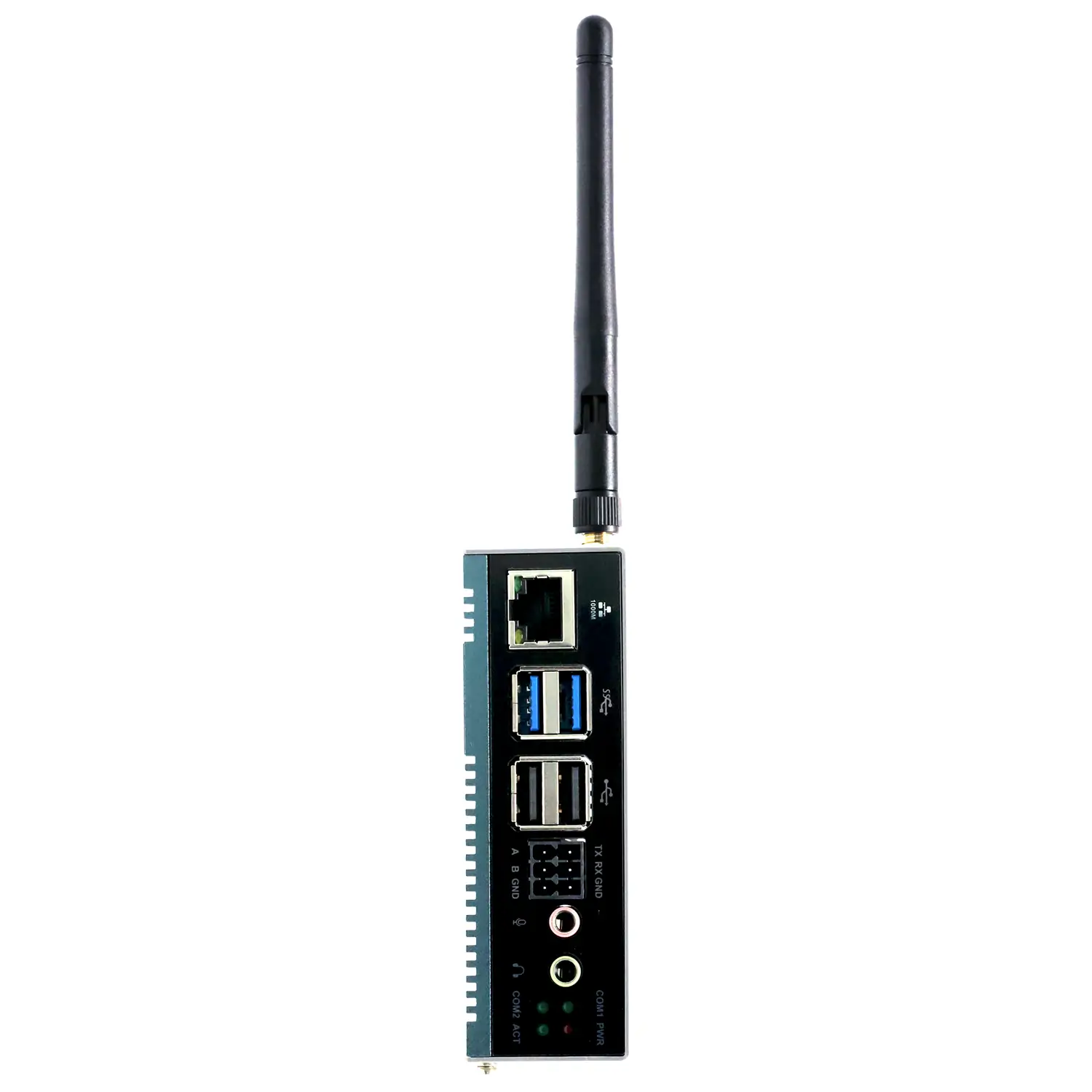

External Antenna Design Resolves Signal Attenuation in Metal Enclosures
Metal enclosures weaken the Wi-Fi signal from an onboard antenna. The ED-IPC3020E routes the antenna outside the enclosure through an IPEX connector and comes standard with a 2dBi rubber duck antenna, fundamentally improving signal quality.
Comparative test results (EDATEC Lab):
Tested at 4m and 10m distances
Measured on 7 channels in the 2.4GHz band and 9 channels in the 5GHz band
Outperformed the onboard antenna version at all test points, with a minimum improvement of ~7 dB
At 10m, the average improvement in the 2.4GHz band was ~22 dB, with a maximum of nearly 28 dB
Test Scenario | Avg. Improvement (2.4GHz) | Avg. Improvement (5GHz) |
4m | ~10 dB | ~18 dB |
10m | ~22 dB | ~16 dB |

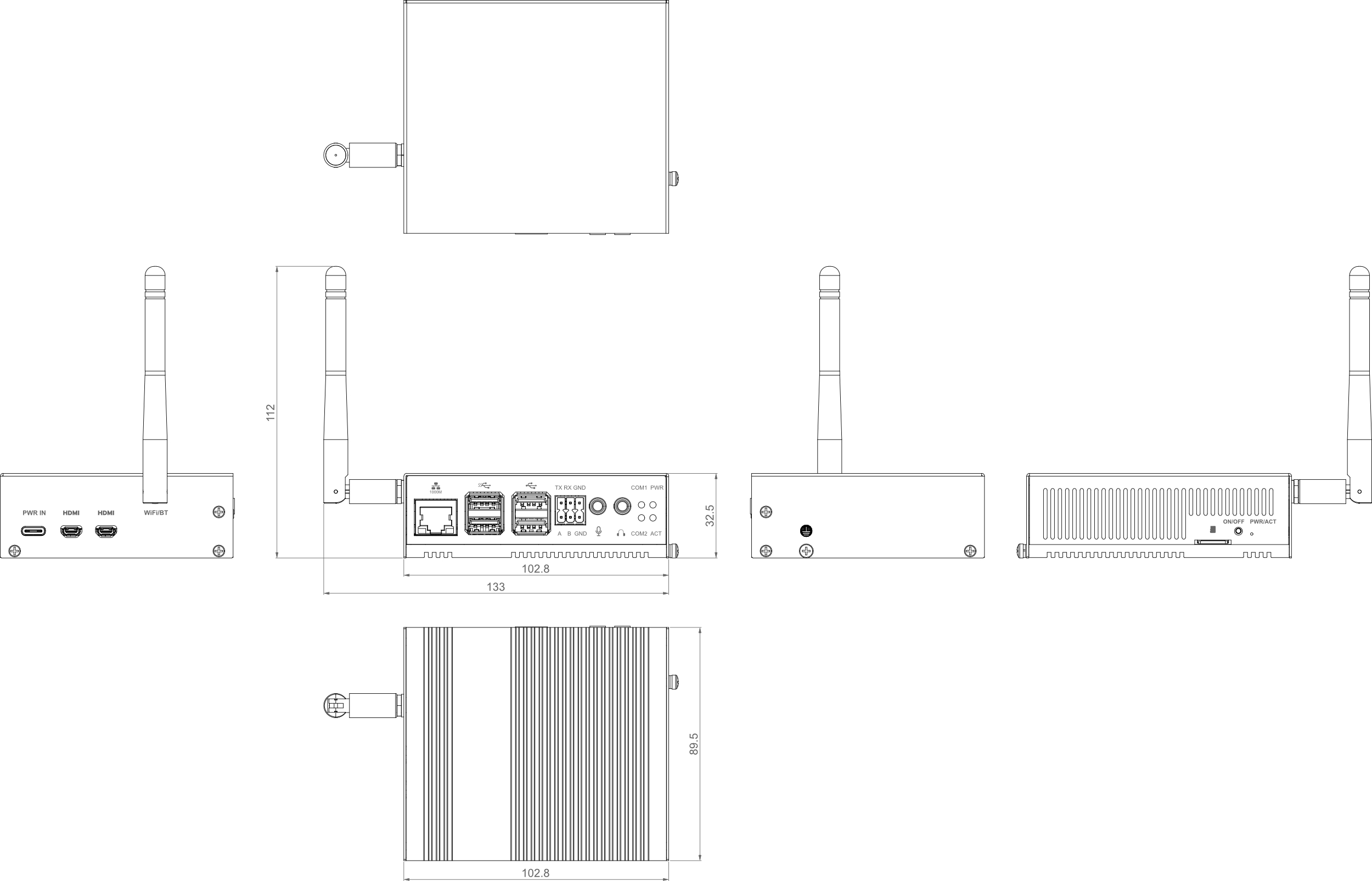

Compact and Flexible Installation
Weighs approximately 300g; compact footprint fits space-constrained cabinets
Desktop placement supported; optional wall-mount bracket available
Compatible with Raspberry Pi OS Ecosystem, Typical Applications:
Industrial Control
Data Acquisition
Edge Computing
Thin Client
Industrial SCADA
